Product Description
High Saturation flux density at high temperature. For power conversion transfomers. Good noise suppression from 0.5 to 20 MHz.

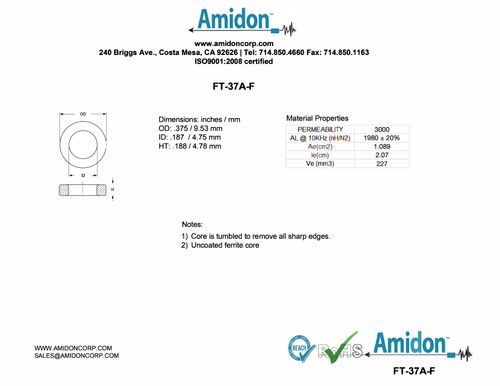

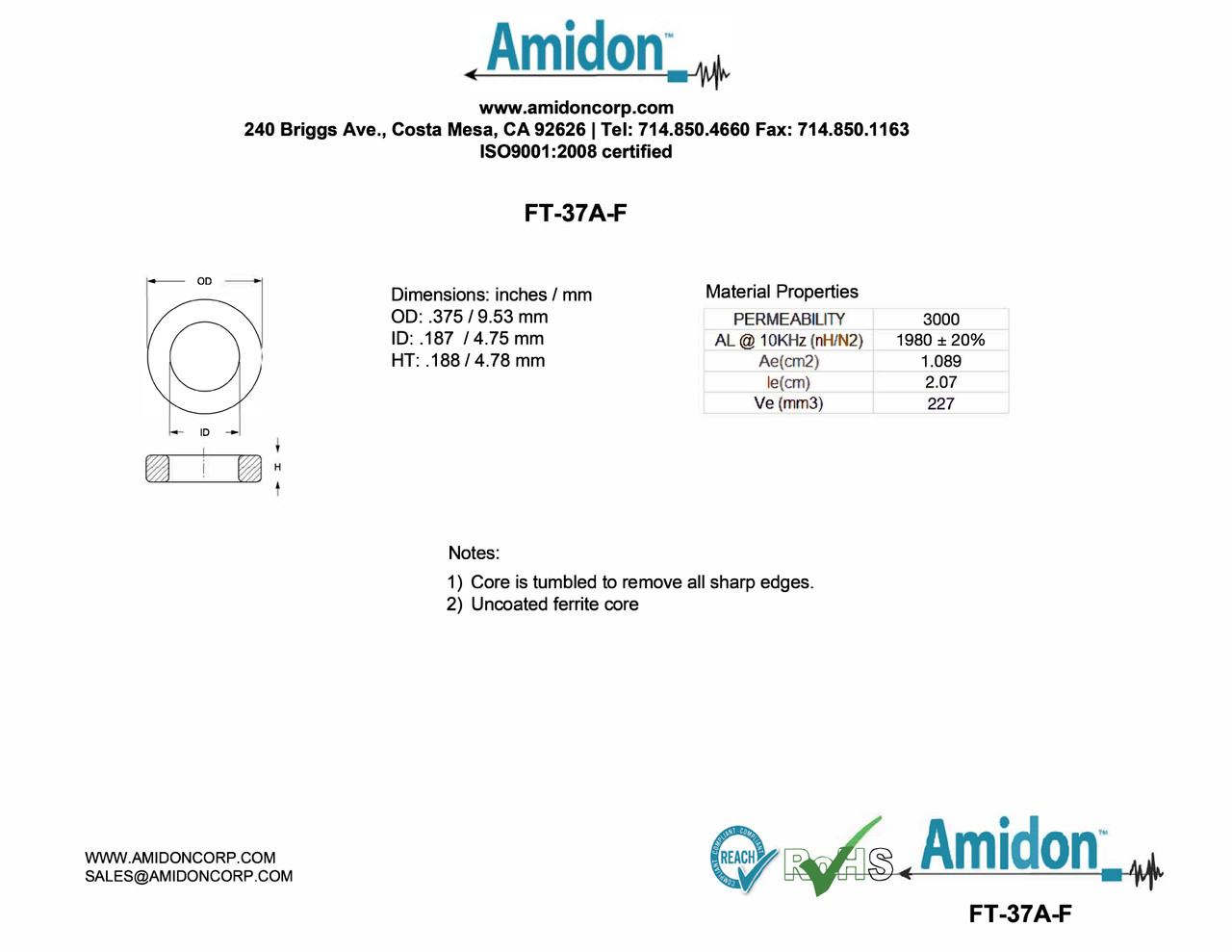

| Inner Diameter: | 0.187 | inches | / | 4.75 | mm |
| Outer Diameter: | 0.375 | inches | / | 9.53 | mm |
| Height: | 0.188 | inches | / | 4.78 | mm |
| AL Value: | nH/Turn2 | 1980 | ± 20% |
